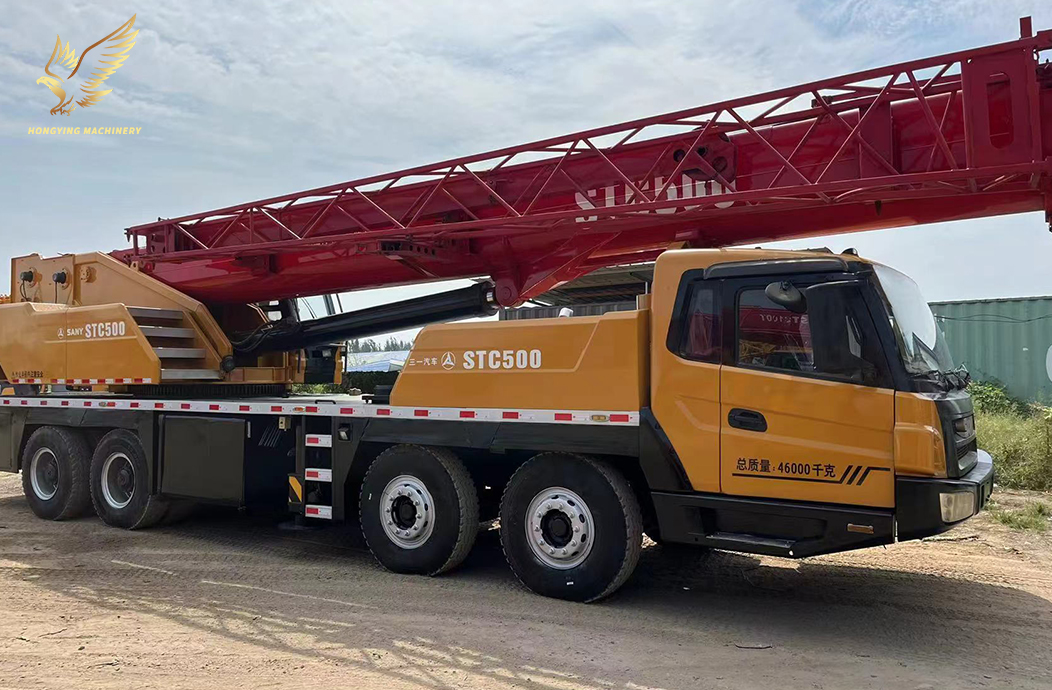

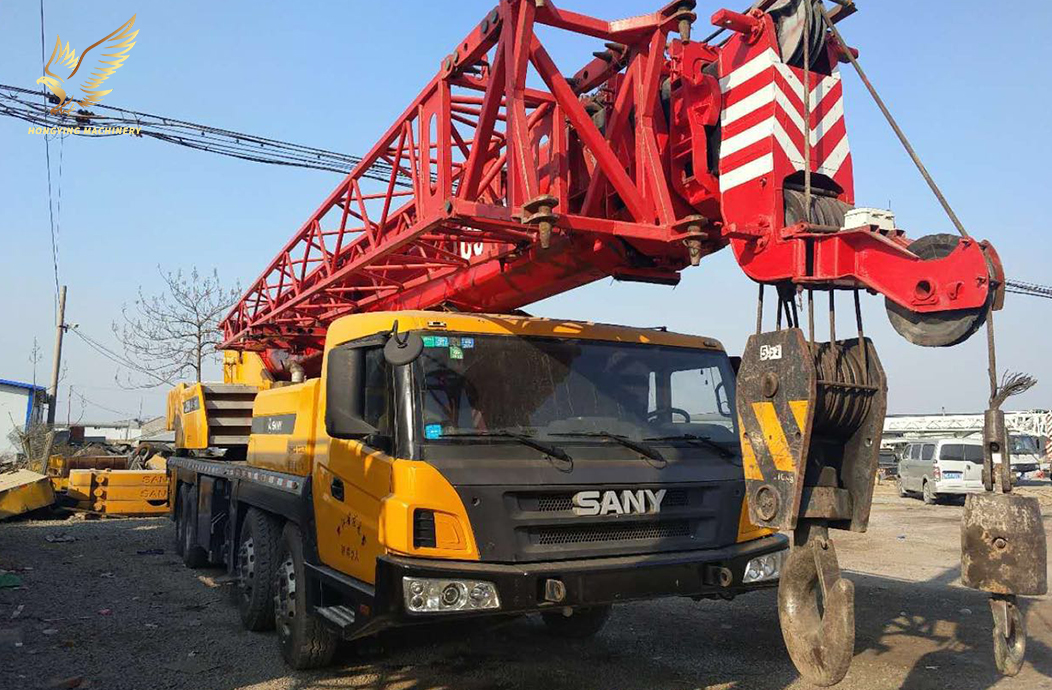

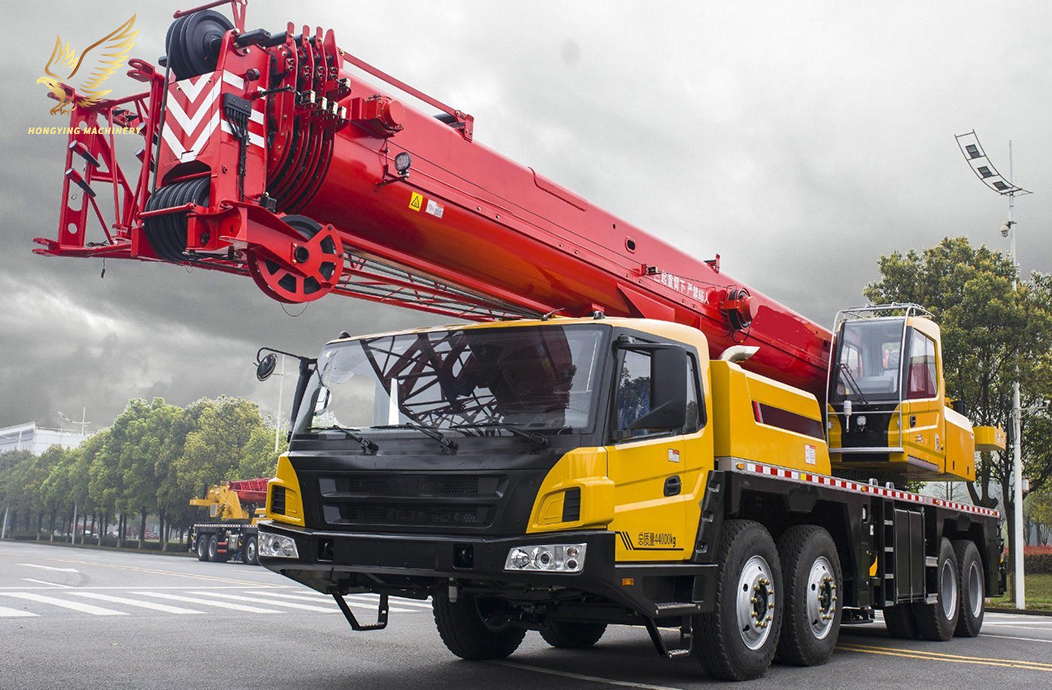

The advantages of Sany STC500 crane are: 1. High efficiency: It adopts advanced lifting technology and has high lifting efficiency, which can quickly complete lifting tasks and improve work efficiency. 2. Strong lifting capacity: It has a large lifting capacity and can carry heavy goods, suitable for various lifting work.
| SANY STC500C | |
| Engine | SC9DF340Q4 |
| Maximum rated lifting capacity (t) | 50 |
| Maximum rated lifting torque (KN.m) | 1886.5 |
| Maximum lifting capacity (tons) | 45-90 tons |
| Maximum lifting height (m) | 64 |
| Chassis Engine model | Yuchai YCK09 |
| Rated power (kw) | 251 |
| Maximum driving speed (km/h) | 80 |
| Minimum turning diameter (m) | 22.5 |
| Operating weight (t) | 44.6 |
| Overall dimensions (length x width x height) (mm) | 13700*2500*3810 |
| Operating weight (t) | 44.6 |
| Maximum main arm length | 43.5 m |
| Maximum auxiliary arm length | 16 m |
| Maximum lifting height | 59.5m |
| Maximum lifting torque | 2009 kN·m |
| Counterweight | 7.5 T |
