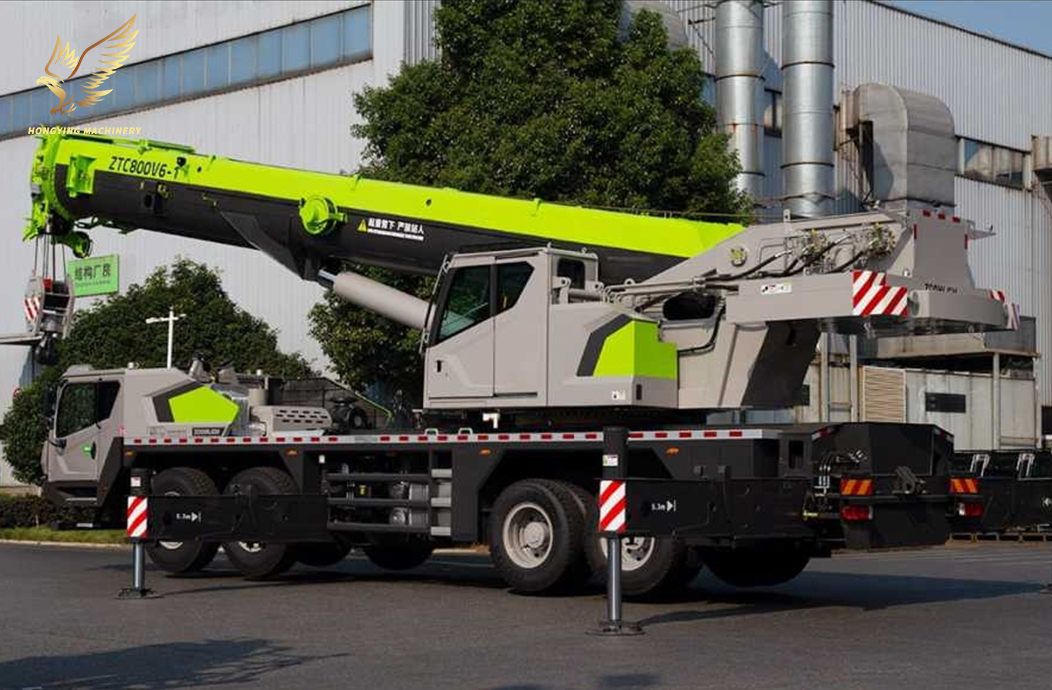

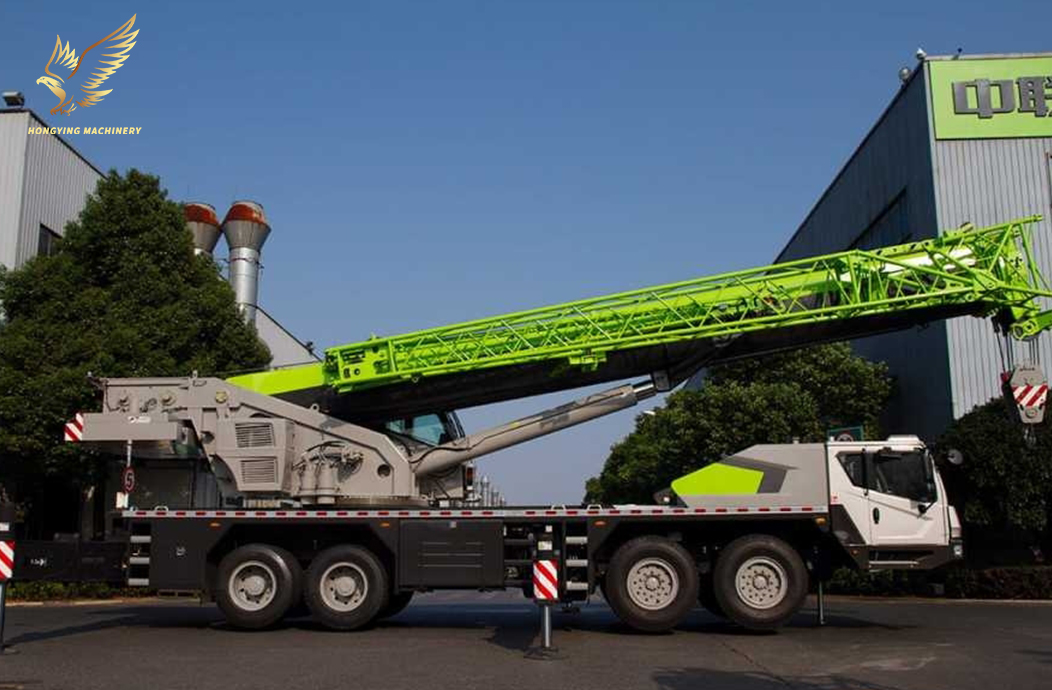

The parameter configuration of Zoomlion ZTC800V truck crane includes:
1.The maximum rated lifting capacity is 80 tons, with a maximum lifting height of 83.5 meters. The main arm is a six-section U-shaped, with a length of 58.5 meters. The comprehensive performance is in a leading position in the industry.
2.It has an advanced boom telescopic control system, supports one-button fully automatic telescopic, emergency, and manual telescopic modes, and has triple safety interlocking guarantees.
3.It adopts the industry's classic transmission chain, which is powerful, mature and reliable, and has good passability. In particular, it launched a 12-ton full-ground steering load-bearing bridge for the first time, with a chassis carrying capacity of more than 50 tons and can travel with 11 tons of counterweight; it can also be equipped with a trailer, which is the only one in the industry to travel with full counterweight.
4.The first intelligent multi-power mode energy-saving system, with an average operating fuel consumption of 4.5L/h, and a comprehensive fuel saving of 20%.
| Zoomlion ZTC800v | |
| Engine | Brand: Weichai Power Euro 5 |
| Maximum rated lifting capacity (t) | 80 |
| Operating weight (t) | 50 |
| boom | 6 |
| Total counterweight (t) | 11 |
| Maximum rated lifting torque (KN.m) | 3180 |
| Maximum lifting height - fully extended arm (m) | 83.5 |
| Slewing speed (rpm) | 0.1-2.5 |
| Rated power (kw/rpm) | 276/1900kw/rpm |
| Maximum driving speed (km/h) | 90km/h |
| length* width*height | 15100mm*2850mm*3820mm |
| Outrigger span | 6.38×8.0m |
