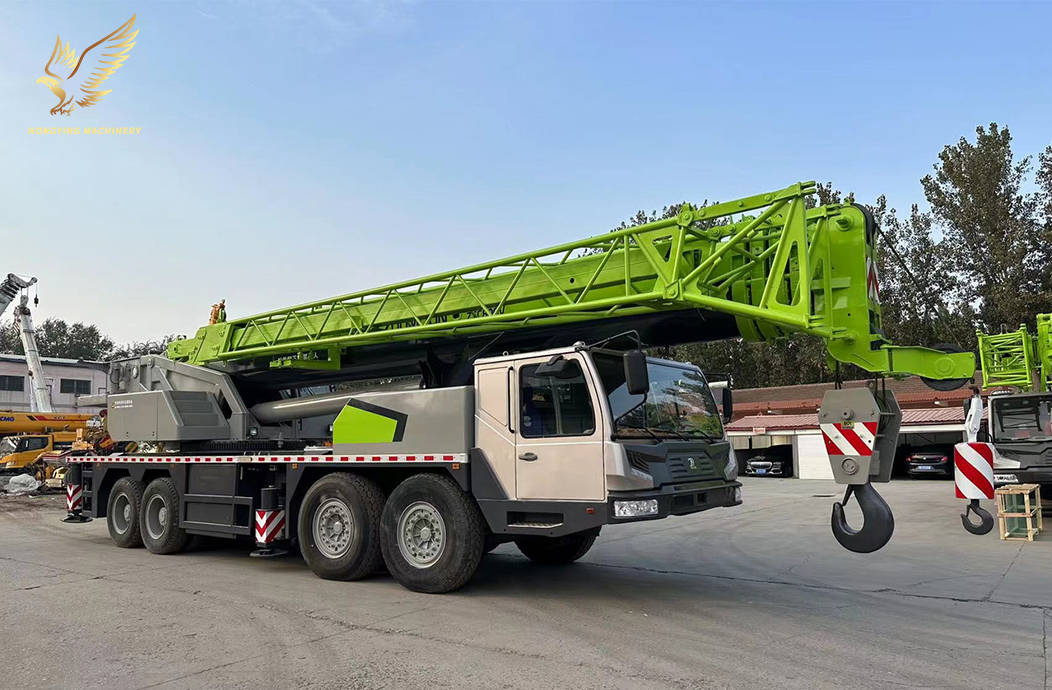

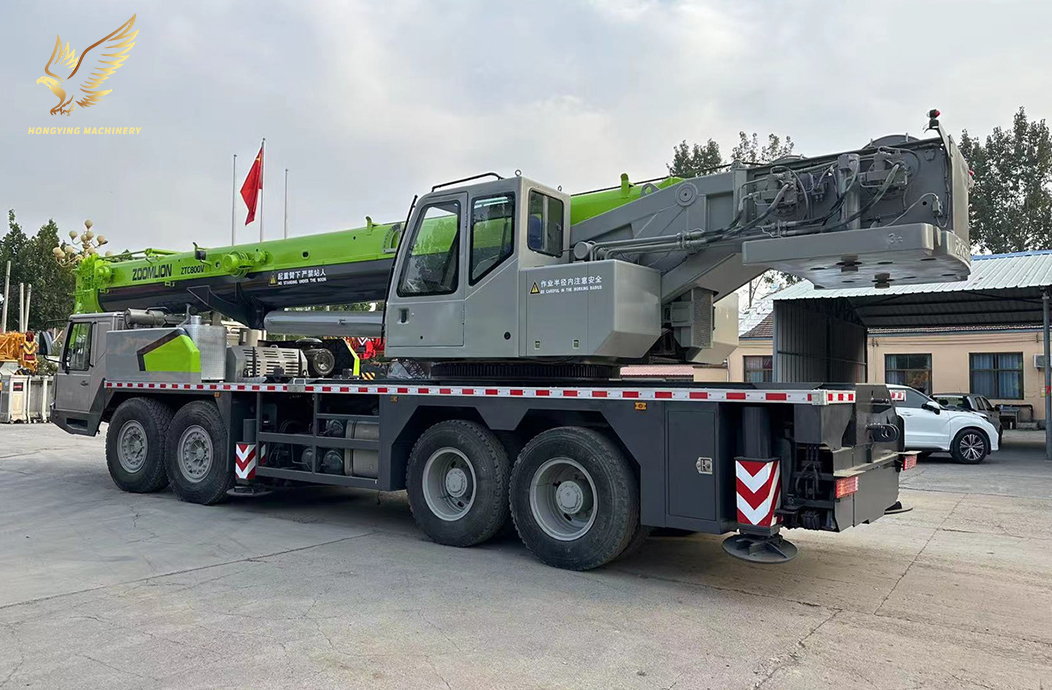

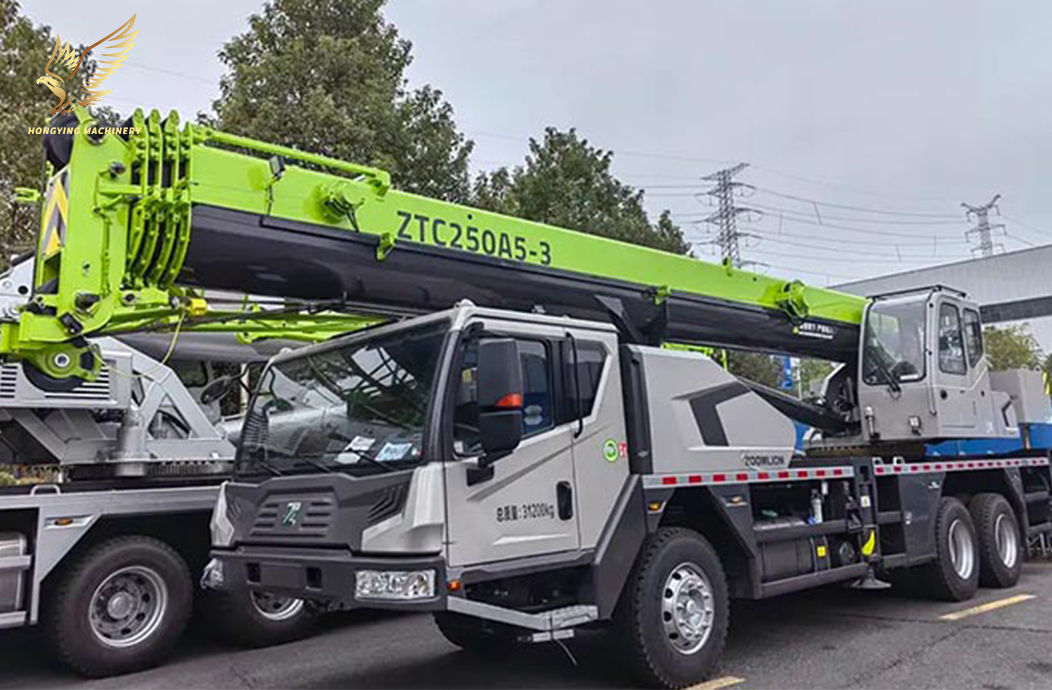

The maximum single-rope speed of Zoomlion’s ZTC250A-1 truck crane is 130m/min. The boom can be raised in about 30 seconds, and the boom can be fully extended in just 74 seconds. The rotation speed can reach 2.8 turns per minute. In specific lifting operations, its overall work efficiency is higher than that of competing products.
Zoomlion ZTC250A-1 crane has the following advantages:
1. Powerful lifting capacity: The ZTC250A-1 crane has a rated lifting capacity of 25 tons and can effectively complete lifting operations under various working conditions.
2. Adjustable height: The crane adopts a telescopic arm design, which can adjust the lifting height according to different engineering requirements and adapt to working environments at different heights.
3. Strong flexibility: The telescopic arm of the crane can rotate 360 degrees, which can be flexibly operated and adapt to various complex working environments and construction requirements.
4. Good stability: The crane adopts a four-wheel drive and four-wheel steering structural design, which can maintain good stability and improve the controllability and work efficiency of the whole machine.
5.Easy maintenance: The key components of the crane adopt modular design, which is easy to maintain and replace, and can reduce maintenance time and cost.
| Zoomlion ZTC250A-1 | |
| Engine | WeichaiWP7 |
| Maximum rated lifting capacity (t) | 25 |
| Operating weight (t) | 32.3 |
| boom | 6 |
| Total counterweight (t) | 6.5 |
| Maximum rated lifting torque (KN.m) | 1067 |
| Maximum lifting height - fully extended arm (m) | 41 |
| Rated power (kw) | 199 |
| Maximum driving speed (km/h) | 80km/h |
| Width | 2550 |
| Minimum turning radius (m) | 10.5 |
| Maximum grade(%) | 41 |
| Boom full extension time (s) | 74 |
| Maximum lifting speed of main winch (m/min) | 130 |
| Maximum lifting capacity (tons) | <45 |
