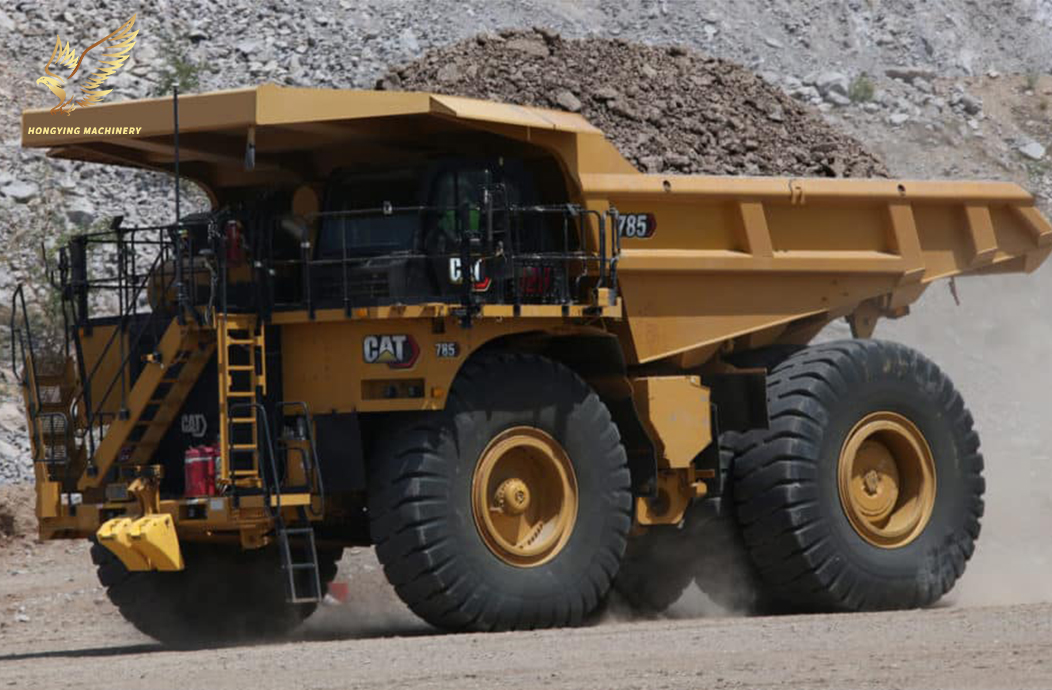

Used CAT 785 Mining Truck

WhatsApp Inquiry Now

The 785 mining truck has excellent performance, comfortable operation and durability. Developed specifically for mining and construction applications, the 785 mining truck always maintains a high-capacity material transportation capacity, reducing the unit ton transportation cost. The solid structural design creates a durable machine. The maintenance process is simple and convenient, which can ensure extremely high reliability and long service life while reducing operating costs.

Specifications

CAT 785G (Tier 4) Rock Truck
Overall Length	11020mm
Overall Width	6630mm
Overall Height	5770mm
Load Capacity - Struck	57m3
Load Capacity - Heaped	78m3
Rated Payload	141 t
Engine Make	Cat@R 3512C HD
Gross Power	1082 kw
Displacement	51.8L
Fuel Capacity	1893L
Number Of Gears - Forward	6
Max Speed	56km/h
Empty Weight	249433kg
Loaded Weight	317460kg
Standard Tire	33.00R51 (E3 and E4)
Front Axle - Empty	48%
Rear Axle - Empty	52%
Front Axle - Loaded - Target	33%
Rear Axle - Loaded - Target	67%
