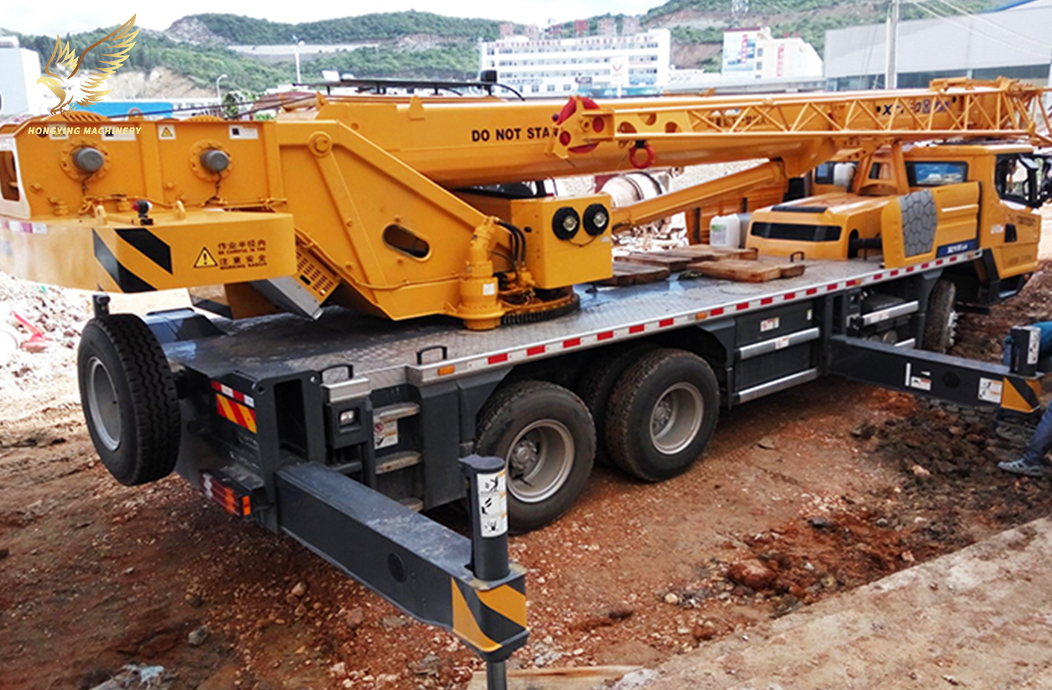

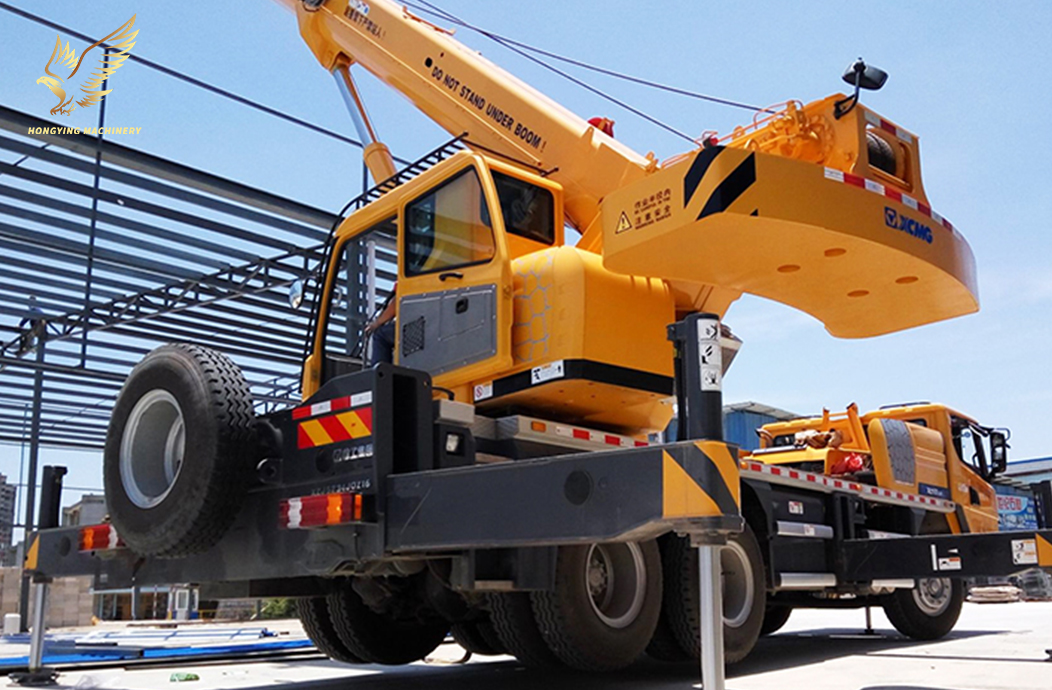

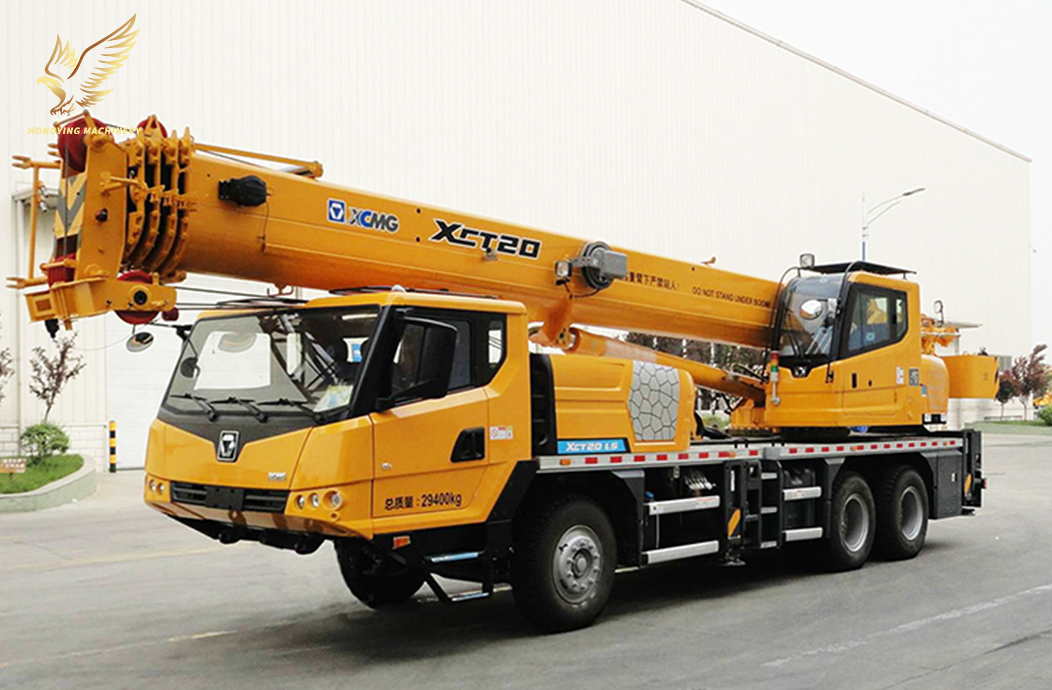

XCMG QY20 uses the WD615.338 engine brand, with a maximum lifting capacity of 20 tons. The basic arm is 11.56m, and the longest main arm is 42.58m. This machine has many features:
1.More excellent performance. The overall layout is optimized, the main load-bearing components are more reasonably stressed, and the lifting performance exceeds the same tonnage products in the industry.
2.The classic "K" series boom telescopic technology is adopted, and the operation is safer and more reliable.
3.The dual industrial control mode engine is adopted, which is powerful, economical and energy-saving.
4.The efficient and energy-saving load-sensitive hydraulic system is sensitive and comfortable to operate, precise control, and has good micro-motion.
| XCMG QY20 | |
| Chassis engine model | D6114ZLQ5B |
| Maximum lifting capacity (tons) | <45t |
| Maximum rated lifting torque (KN.m) | 503 |
| Overall length (mm) | 12310 |
| Overall width (mm) | 2500 |
| Overall height (mm) | 3480 |
| Minimum turning radius (m) | 10 |
| Maximum climbing grade (%) | 25 |
| Boom length - fully extended (m) | 26.2 |
| Auxiliary boom length (m) | 7.5 |
| Maximum lifting height (m) | 26.2 |
