1.6 sections of 64m long elliptical main boom, 3 sections of 24.5m auxiliary boom (optional standard sections), maximum lifting height of 89.2m.
2. The comprehensive lifting capacity is 5-40% ahead of four-bridge products, and the medium-long arm and fully extended arm are not lower than five-bridge products. The maximum lifting moment of the basic arm is 450t•m, the maximum lifting moment of the fully extended arm is 237.6t•m, and the maximum lifting weight of the fully extended arm is 13.2t.
3. The chassis platform of the four-bridge heavy-duty truck crane has strong load-bearing capacity, good maneuverability, stability and driving reliability.
4. The fully upgraded control performance and the industry-customized system slow gear function meet the precise lifting operation. The high degree of intelligence, equipped with anti-false leg technology, overload data effectiveness improvement and other technologies, makes the product safer.

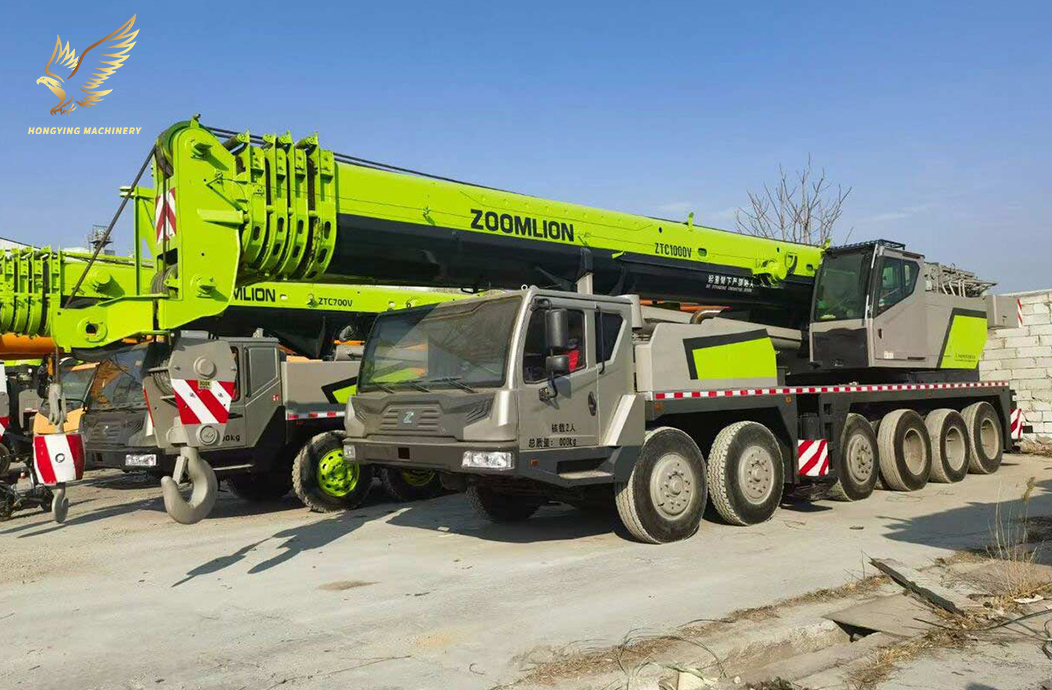

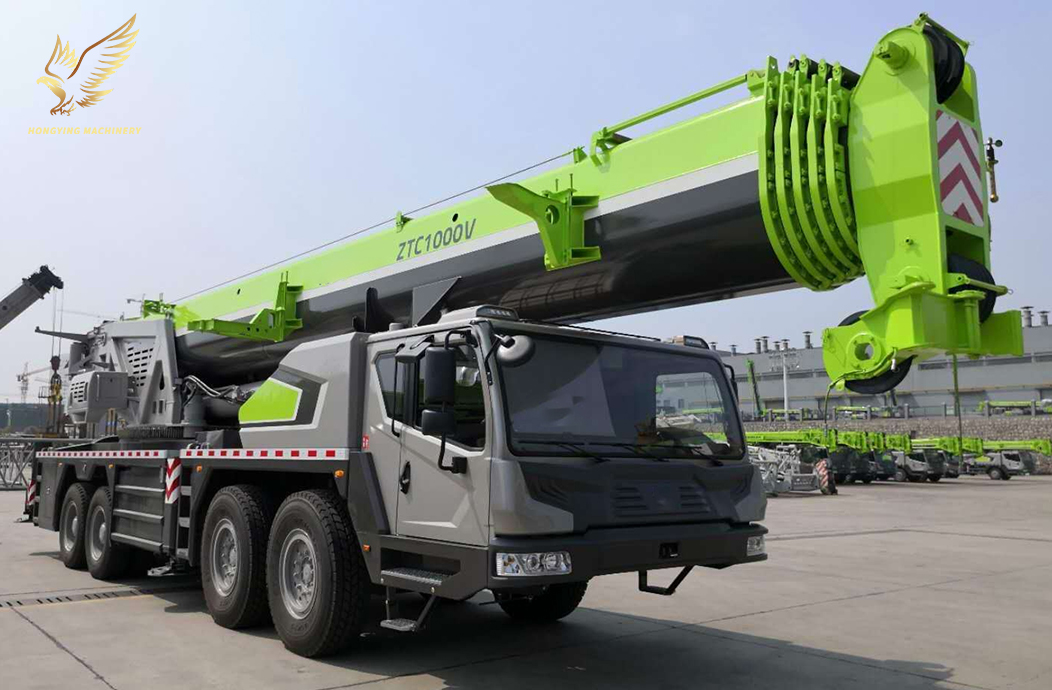

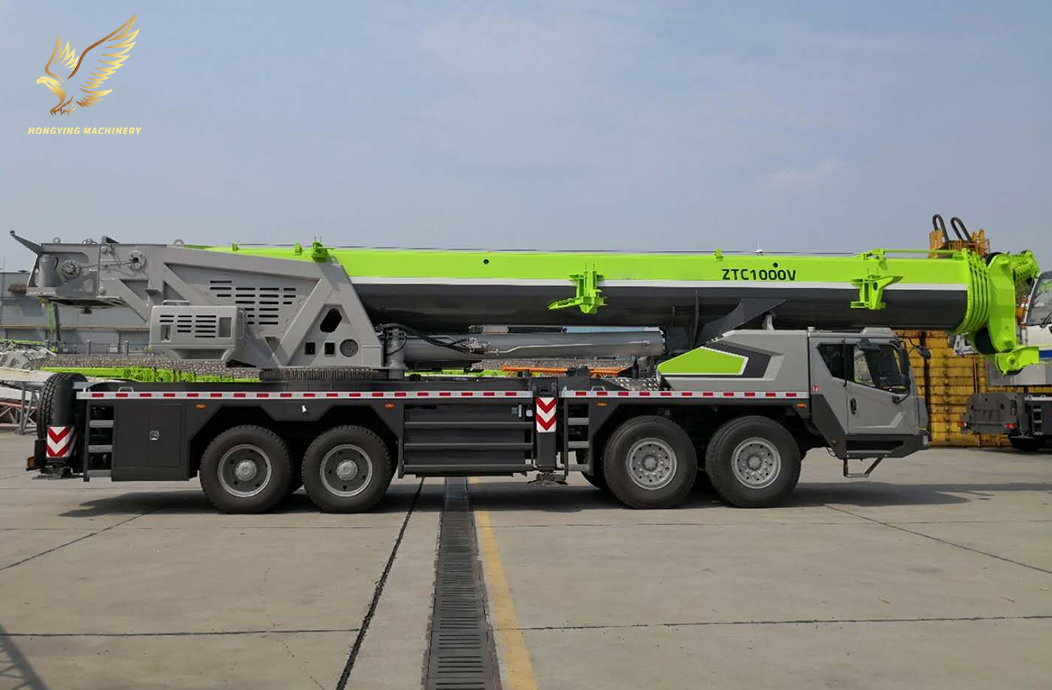

| Zoomlion ZTC100 | |
| Engine | WP12.375E50 |
| Maximum rated lifting capacity (t) | 100 |
| Operating weight (t) | 50000 |
| Total counterweight (t) | 49805 |
| Front axle load | 24000 |
| Rare axle load | 26000 |
| Maximum rated lifting torque (KN.m) | 1800/（1000～1400） |
| Maximum lifting height - fully extended arm (m) | 83 |
| Slewing speed (rpm) | 1.5 |
| Rated power (kw/rpm) | 390/1800 |
| Maximum driving speed (km/h) | 75 |
| Minimum turning radius (m) | 12 |
| Approach angle/departure angle (°) | 0 、15、30 |
| length* width*height | 14990×2900×3990 |
